Luxury Full Length Mortise Entrance Handleset Oil-Rubbed Bronze / Antique Brass

*IMPORTANT: This mortise entry set requires custom door prep. as it will not fit a standard pre-cut door. Template is provided.

The mortise lock is operated by a key from the exterior, and by the thumbturn from the interior. The door is opened from the exterior by a metal handle with thumb grip, and by the egg shape knob from the interior.

The Mortise box has a button on the edge of the door that allow you to set the box to lock behind you as you leave the home, or to keep the door unlocked.

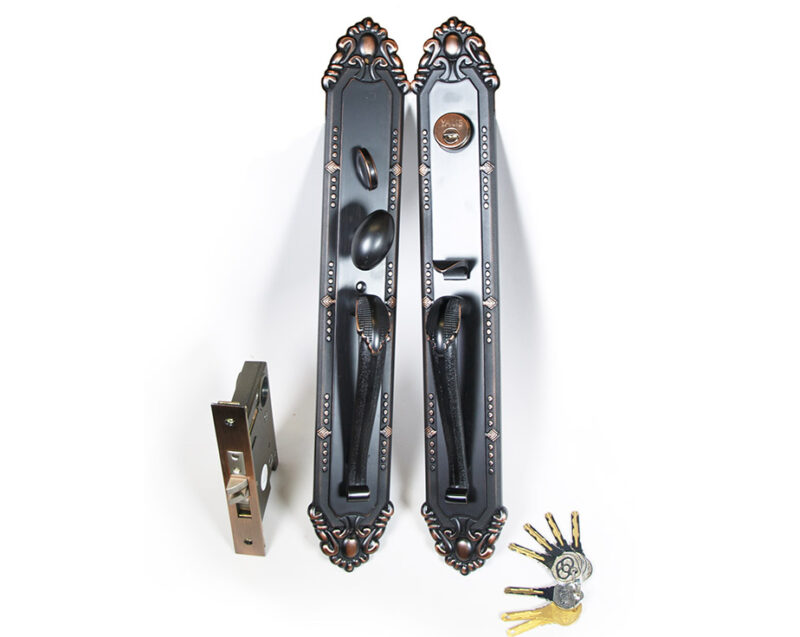

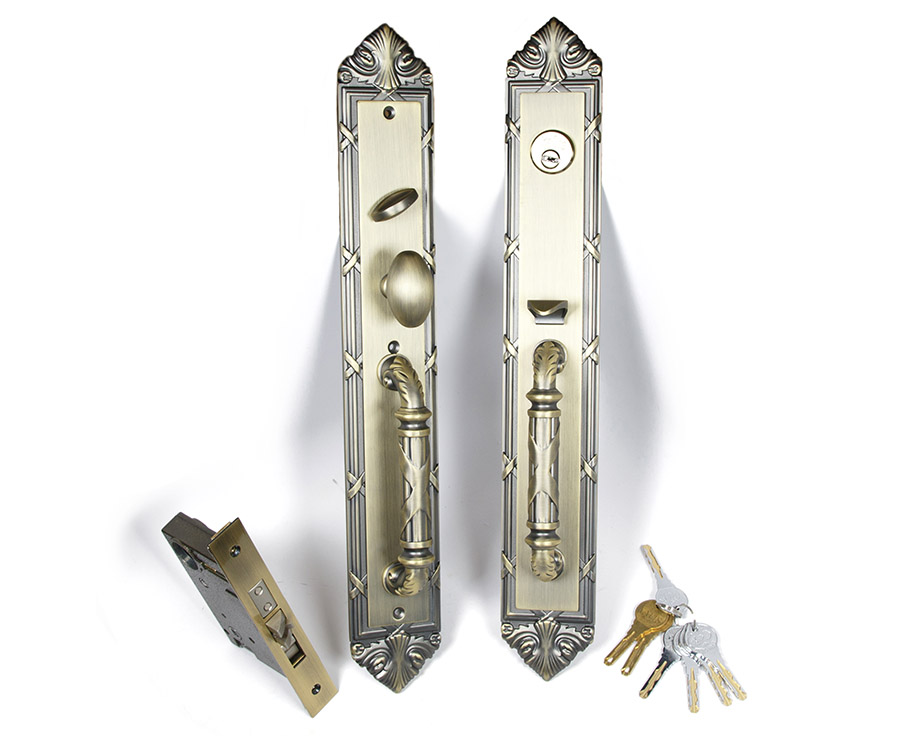

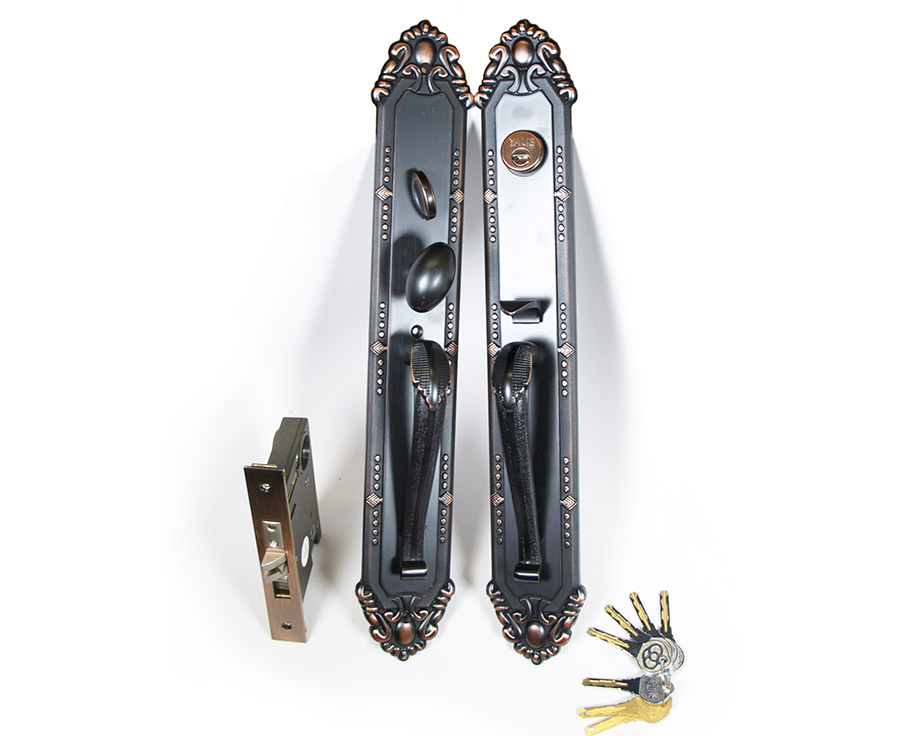

Complete set: includes full long backplate trim on exterior and interior, mortise lockbox, face plate, strike plate for door jamb and mounting hardware

Shipped with square corner mortise plates and strike plate

• Specifications:
• Material: Brass
• The product includes Trim Set, Key Cylinder, Mortise Lock, Inner Lever, Mounting Screws
• Door Thickness: 1 3/8″ (35mm) – 2″ (51mm)
• Function: Mortise Lock Entry Set

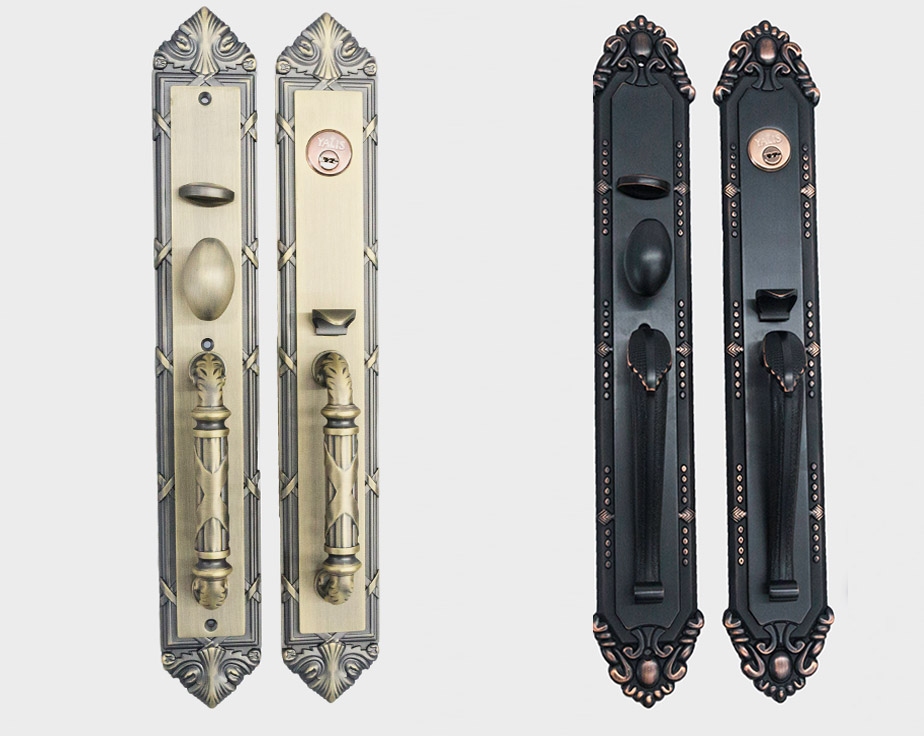

• Available in 2 finishes: Oil-Rubbed Bronze, Antique Brass
• Includes all required hardware for complete installation

luxury_mortise-ORB

Mortise Lock Entry door preparation guide

Lux ORB – PDF

mortise_lock

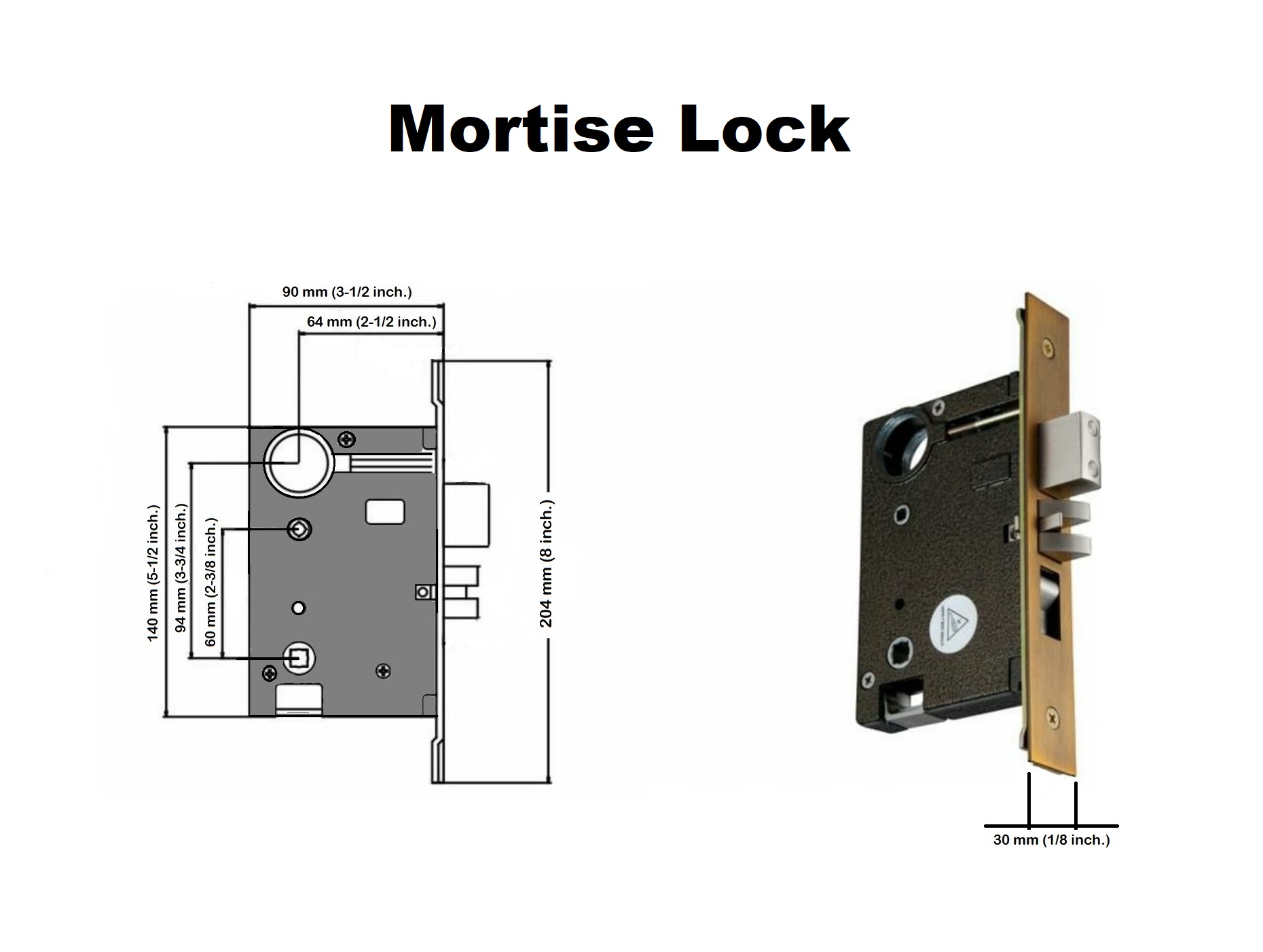

mortise lock specs

mortise lock scheme

mortise_cylinders

Mortise lock PDF
