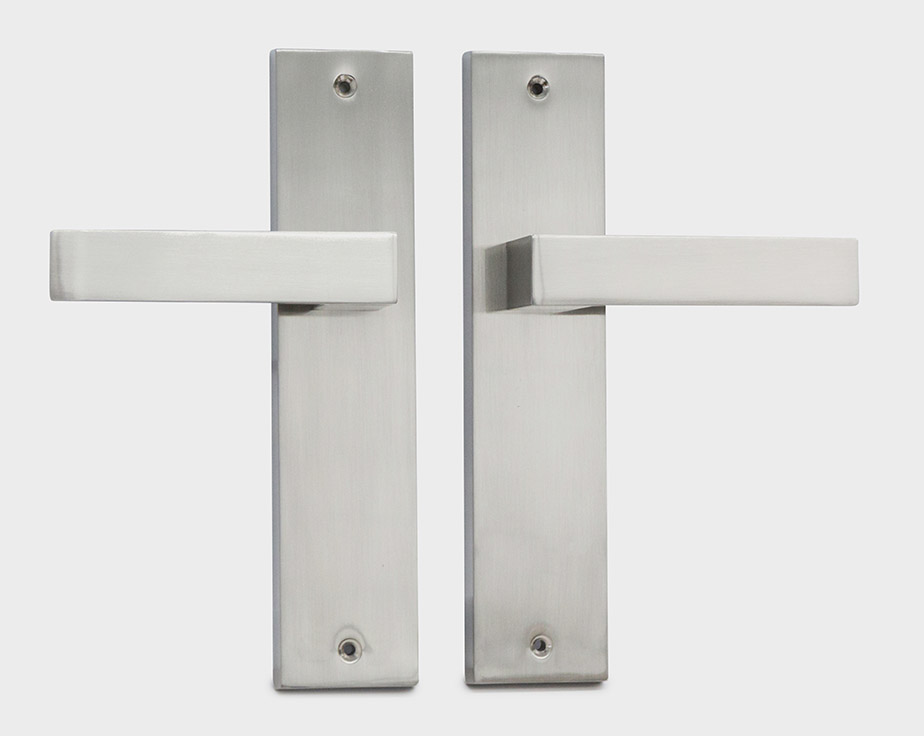

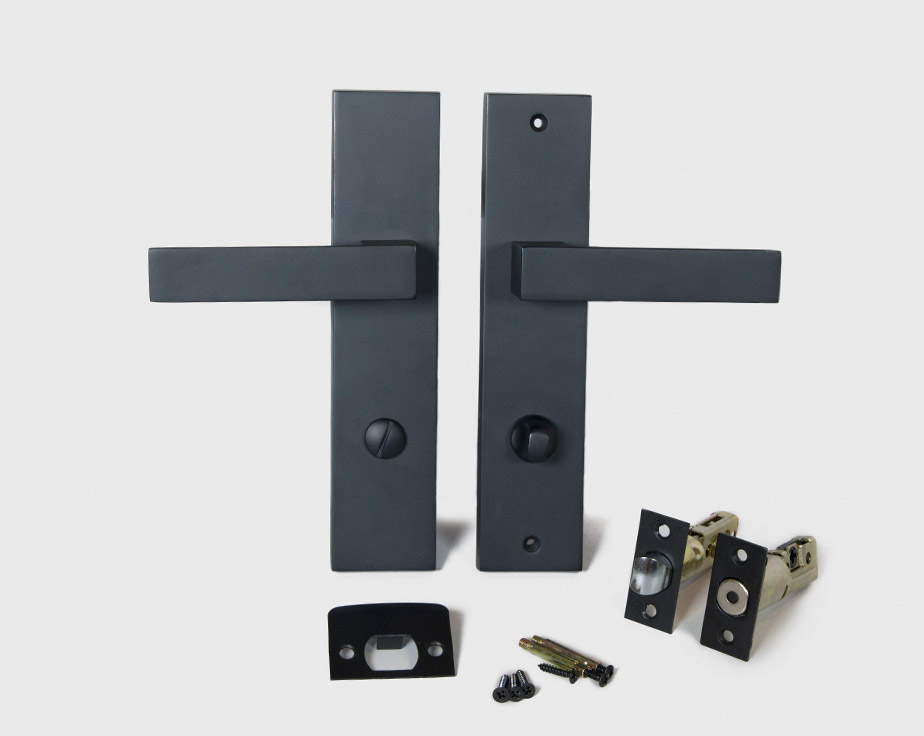

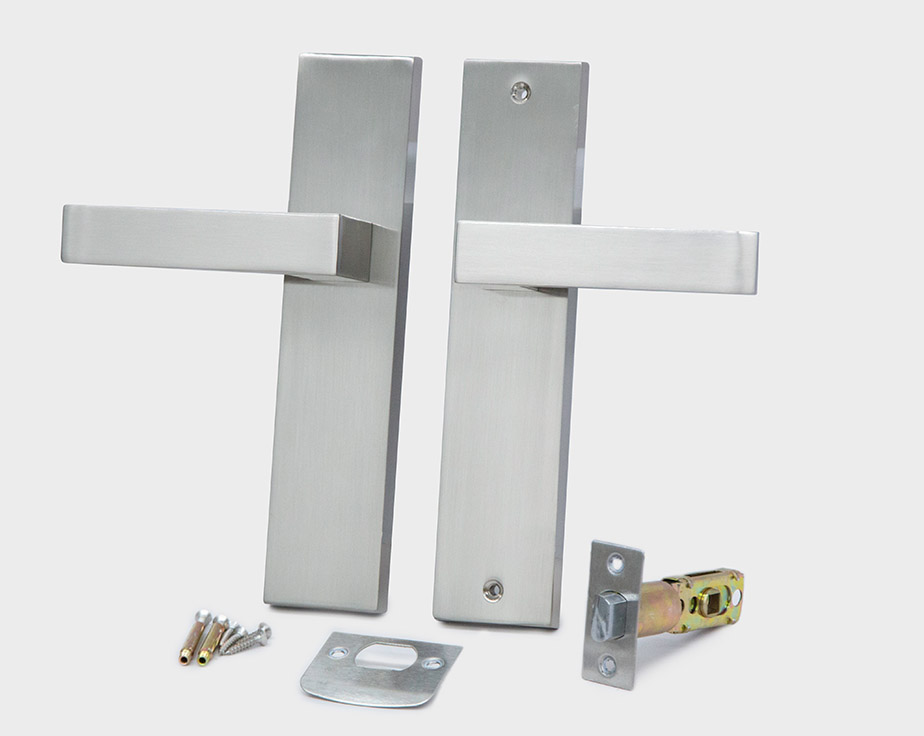

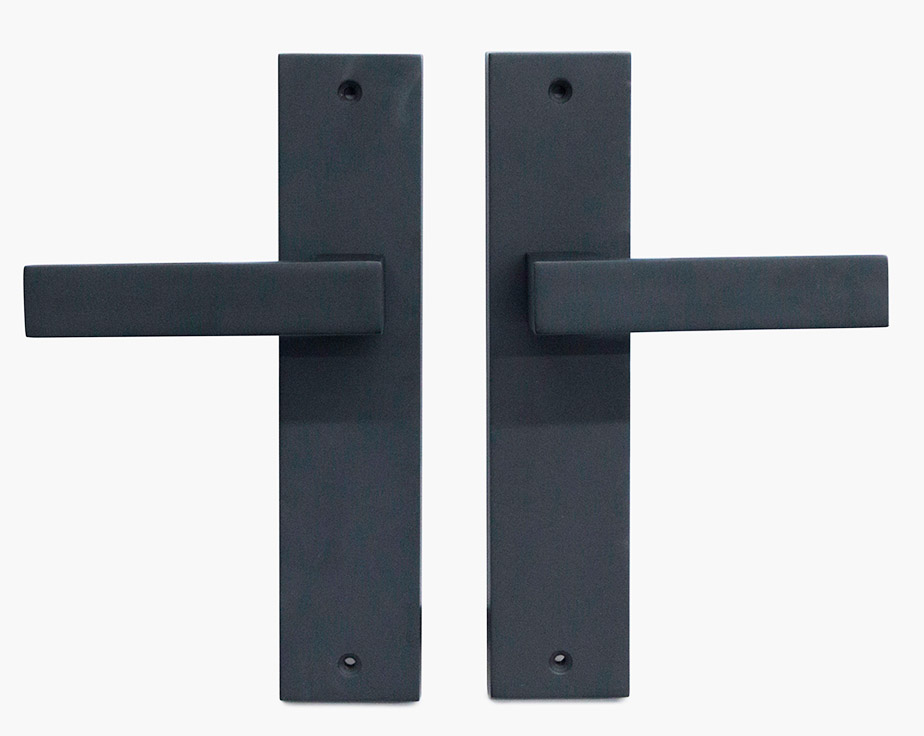

Tokyo Long Backplate Door Handle Lever Set with NARROW Plate

*IMPORTANT: This door handle requires CUSTOM door prep. as it will not fit a standard pre-cut door.

THE DOOR MUST HAVE NO PRE-DRILLED HOLES due to NARROW BACKPLATE!

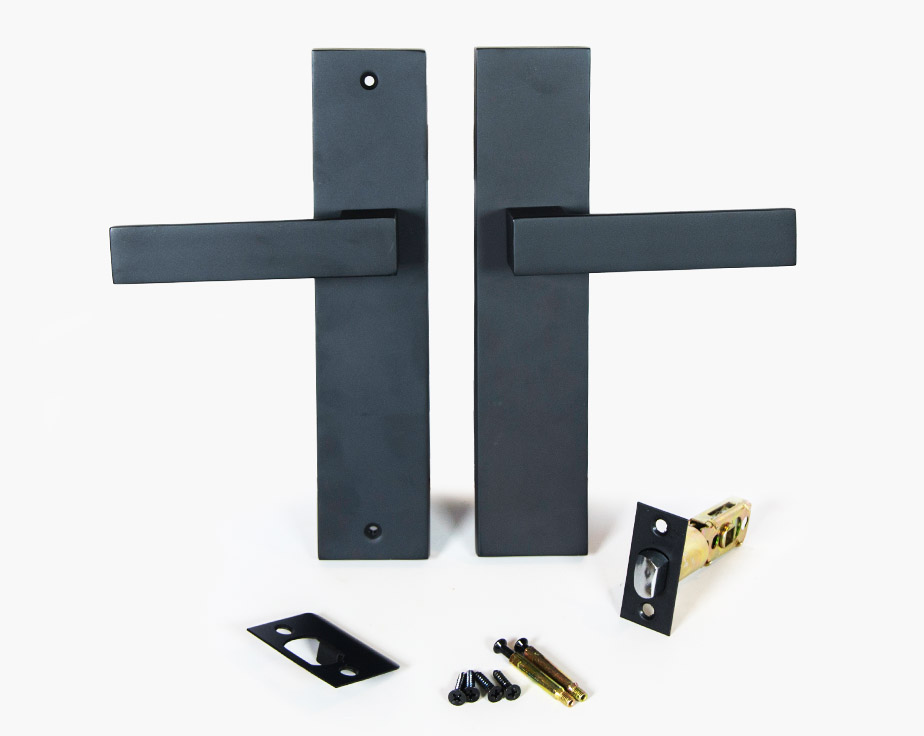

Passage – for use on interior doors where a locking feature is not required (e.g. bedrooms or hallways).

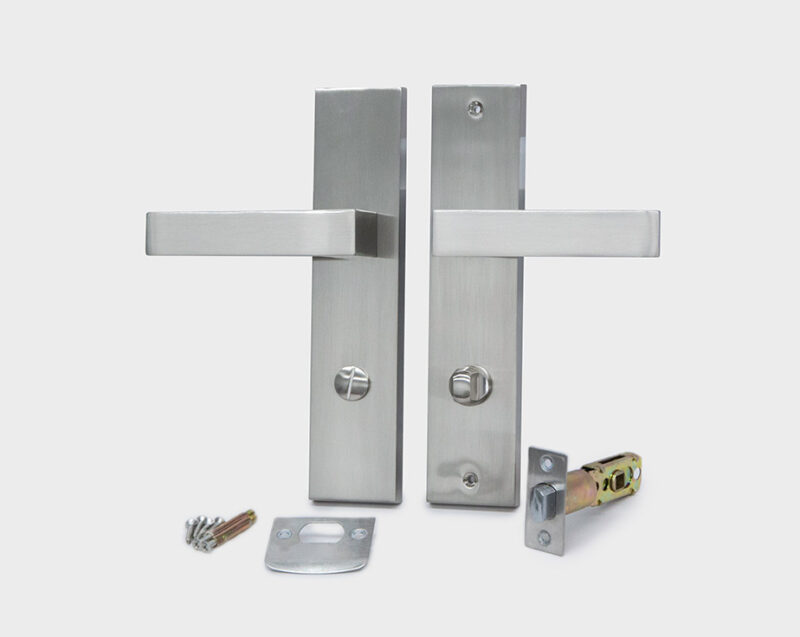

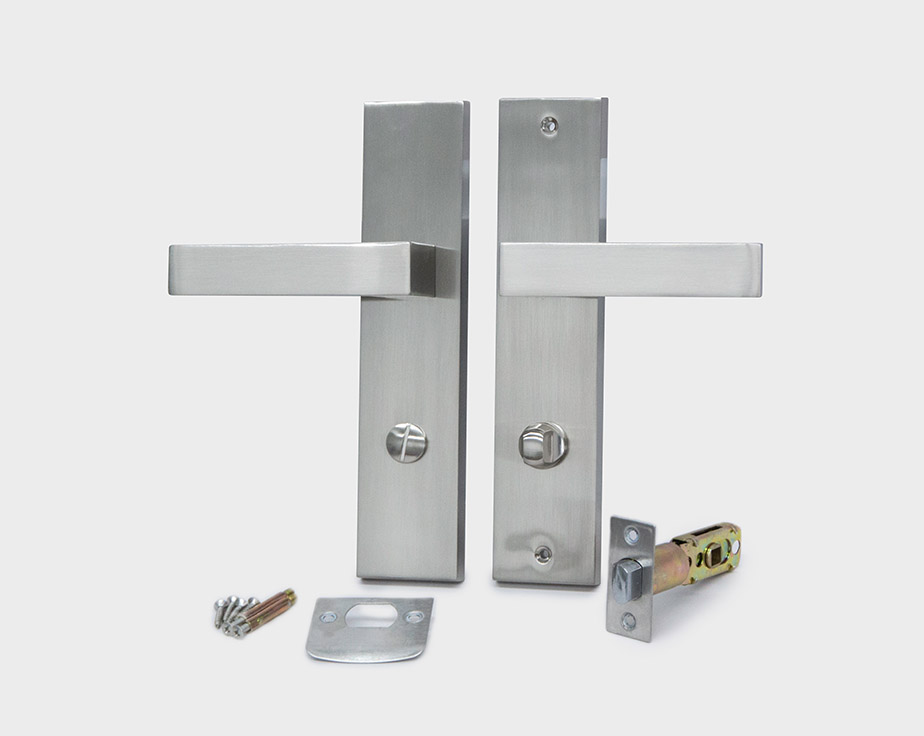

Privacy – for use on interior doors where a privacy locking function is required (e.g. bathrooms).
Dummy – for use on interior door where a pull/push function is required (e.g. closet). Comes as set of 2 handles.

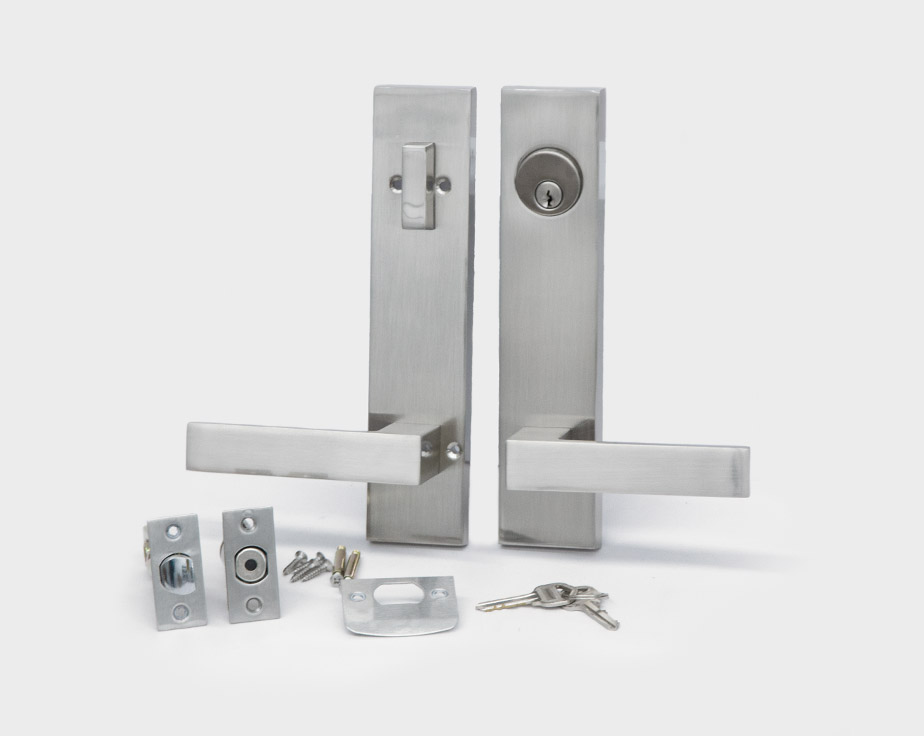

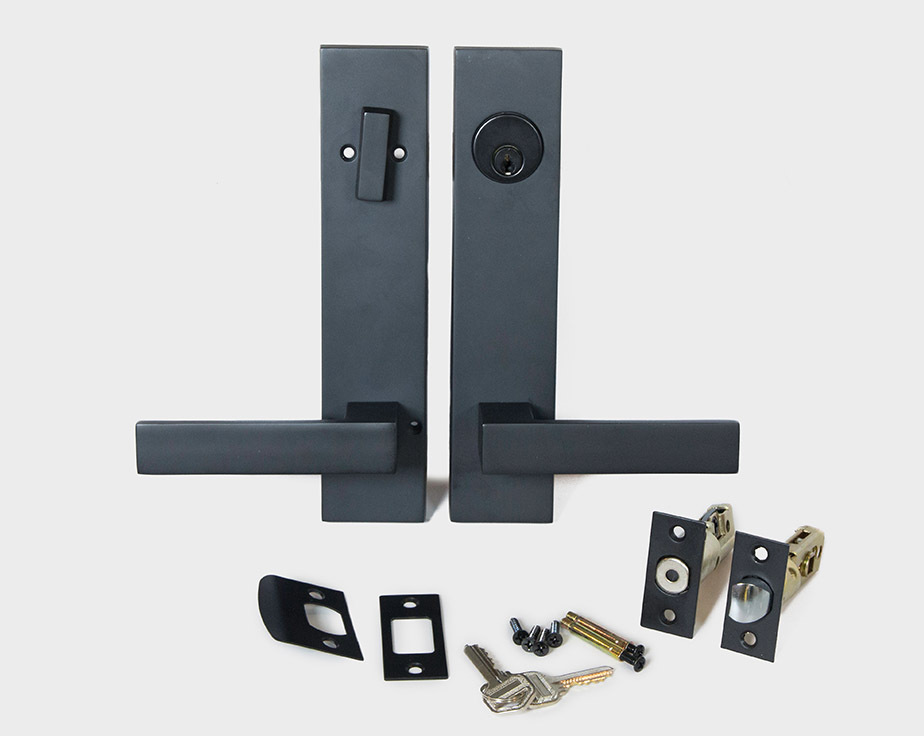

Keyed – for use on interior or exterior doors where strong privacy locking function is required (e.g. office). Can be opened outside only with a key.

Keyed Set available in 3 variations: Keyed Different, Keyed Alike, Keyed Dummy

Keyed Different – locks with Different Keys. Each lock has its own unique key and can not be open by the others keys from the same locks.

Keyed Alike – when all locks in a set can be opened with the same key. This option is beneficial when multiple locks are use by the same person so that only one key needs to be used.

Keyed Dummy – specifically designed for double doors (patio doors) where one door is active, another door is inactive and has a “blank” cylinder . This dummy door does not latch and stays in due to a flush bolt (sold separately) on the top/bottom of the door.

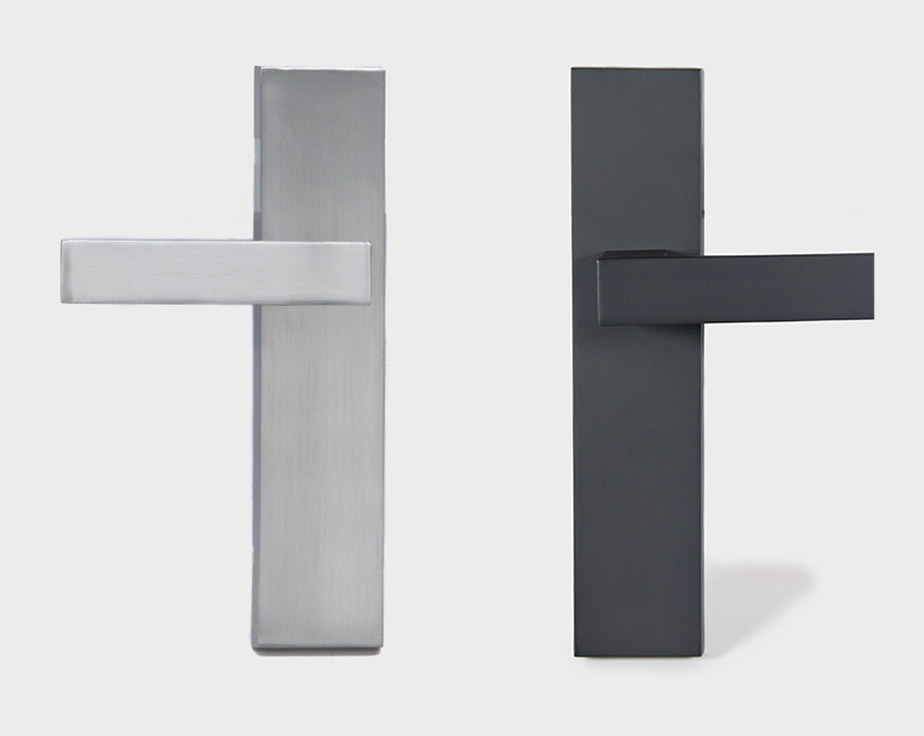

Available in following finishes:  Satin Nickel, Black Matte

Features:

• Features an adjustable latch to fit all standard door preparations.
• Solid Zinc Construction
• Turn Button Lock for privacy function
• Strengthened Springs Ensure that the Lever Stays Level Over Time
• Includes Square Corner Strike
• Includes all necessary operating parts and fastening hardware

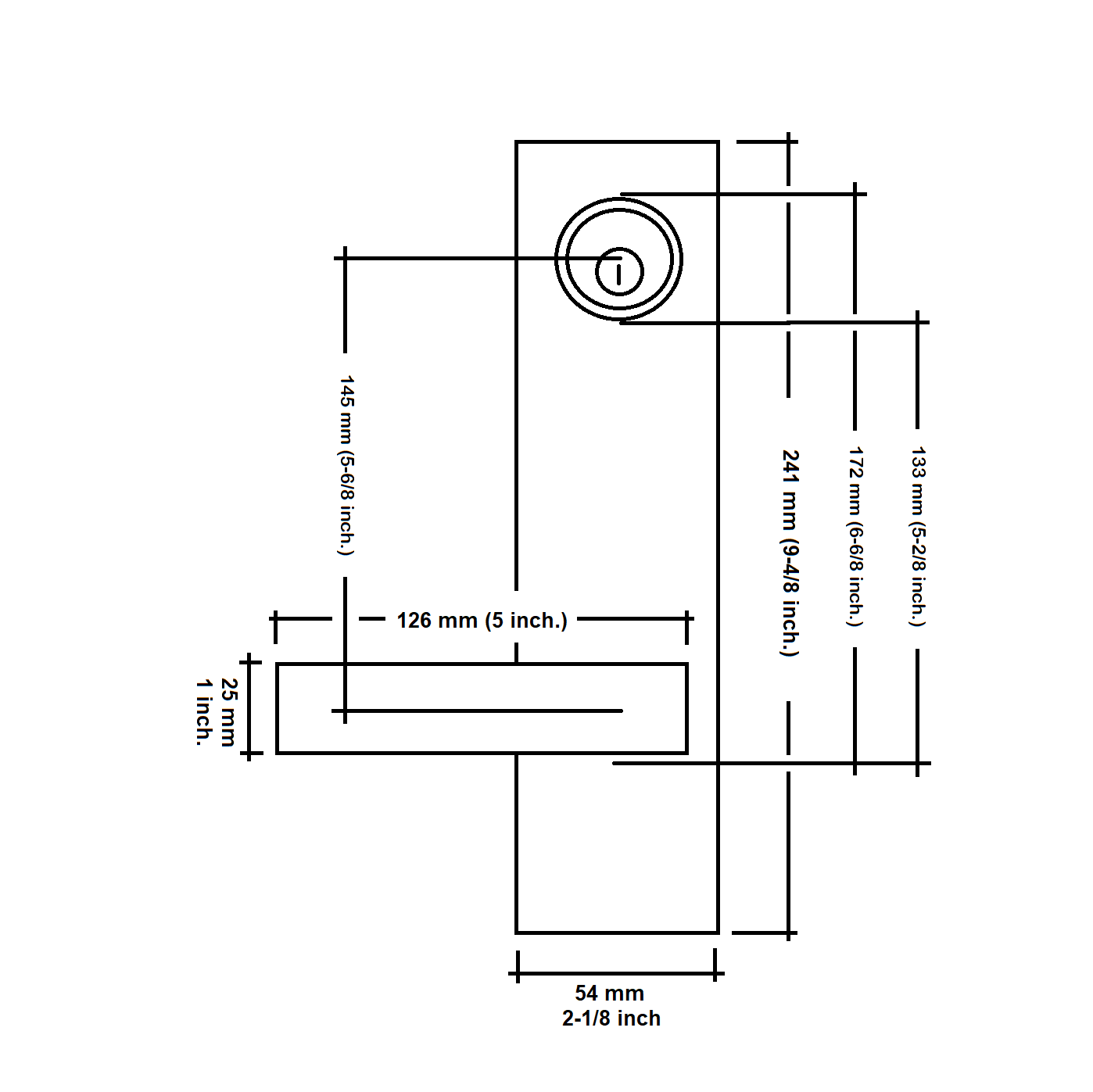

Specifications:

• New doors installation only (NO BORE HOLES)
• Door Thickness: 1 3/8″ (35mm) or 1 3/4″ (44,5mm)
• Latch has square corner rectangular faceplate:  1″ (25mm) x 2 1/4″ (57mm)
• Backset is adjustable: 2 3/8″ (60mm) and 2 3/4″ (70mm)
• Bore hole: 1 1/2″ (38mm)

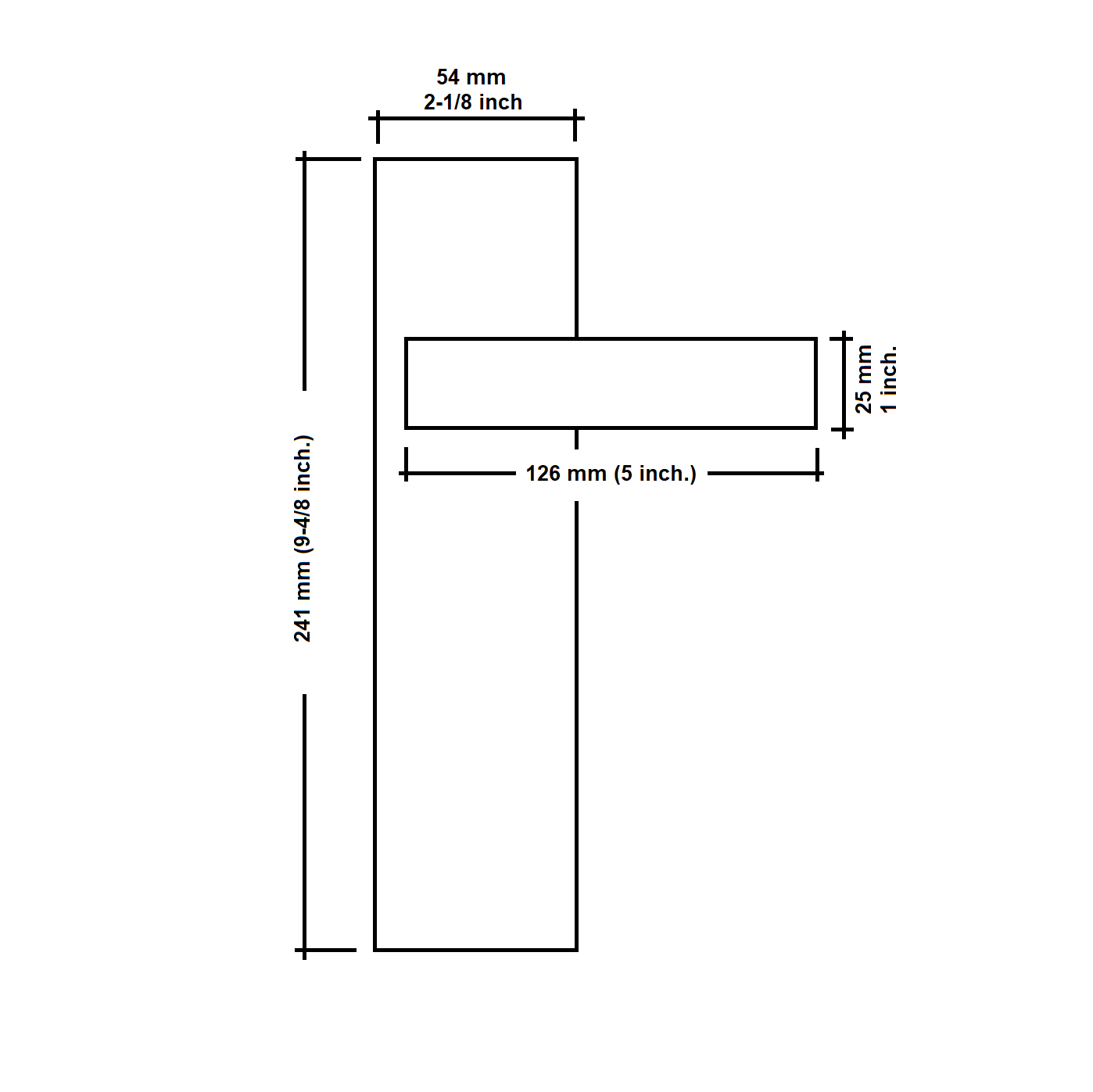

• Grip Length: 5″ (126mm)
• The long plate size: W: 2 1/16″ (52mm) H: 9 4/8″ (241mm)
• Weight: 2.20 lb. (1 kg)
• Includes all required hardware for complete installation

How to determine door handing:

1). Stand facing the door on the outside ( on the side of the door you enter from)

2). If the hinges are on the right, it’s a right hand door,

if the hinges are on the left, it’s a left hand door.

long plate straight handle PDF
